Sigma 70cm Tilecutter Pull Series 4 ART4BU

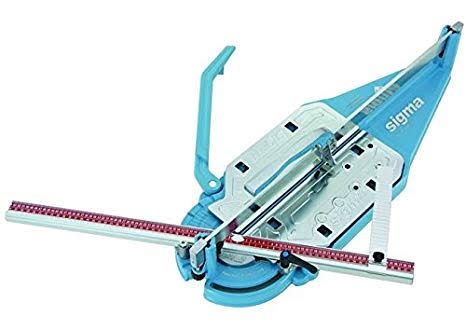

Sigma Art 4BU 70cm Tile Cutter

DESCRIPTION


The Sigma Art 4BU 70cm Tile Cutter is classified as a Medium Sized
Tile Cutter. The 4BU Tile Cutter is of robust construction and is testament
to the many years that Sigma has dedicated towards developing the
current range of tile cutters.

The Sigma Art 4BU 70cm Tile Cutter frame is manufactured using light hardened
alluminium alloy. The push handle with cushioned scoring runs completely on
stainless steel runners.

The main measuring scale can pivot between +45° and -45°.

FEATURES

• The scoring wheel is also available with a TIN coat for longer life span
• Ergonomic handle specific for pull scoring
• 100mm large splitting foot
• Interchangeable stain-free protection with shock-absorber at the end of the scoring
• The handle is coupled to the sliding carriage with two thrust bearing ball-bearings, for maximum precision
• Excellent scoring wheel visibility
• CNC milled wheel holder, roller bearing and anti-friction metal shell to erase friction and lateral wear of the scoring wheel
• An automatic system holds the handle raised to ease the positioning of the tile
• The sliding carriage of the handle is wear-free thanks to 3 double crown ball bearings that guarantee precision over time, without the need for maintenance
• Rigid Structure which allows for an excellent scoring and splitting phase
• Scoring handle slides entirely on ball bearings
• Swivelling measurement bar equipped with spare scoring wheel compartment
and extendable with 500mm extension arm (Item 17A.)
• 70cm tile length capacity
• Measurement bar is now fixed with a steel pin, which reduces wear and maintains precision over time

MEASURES

• Maximum Tile Length - 70cm
• Maximum Tile Thickness - 17mm
• Diagonal Cuts - Maximum Tile Square Dimension of 49.5cm x 49.5cm
• Machine Weight - 10.1kg
• Packaged Weight - 13kg
• Packaged Size - 102 x 48 x 31cm
